ACS880-07-1160A-7+G313+K454+L504+L525+P904+R700
General Information
Global Commercial Alias:ACS880-07-1160A-7
Product ID:3AUA0000142720
ABB Type Designation:ACS880-07-1160A-7
Catalog Description:ACS880-07-1160A-7 PN:1100kW, IN:1160A
Categories
Products » Drives » Low Voltage AC Drives » Industrial Drives » ACS880 single drives » ACS880-07 - Cabinet-built single drive
Previous ImageNext Image

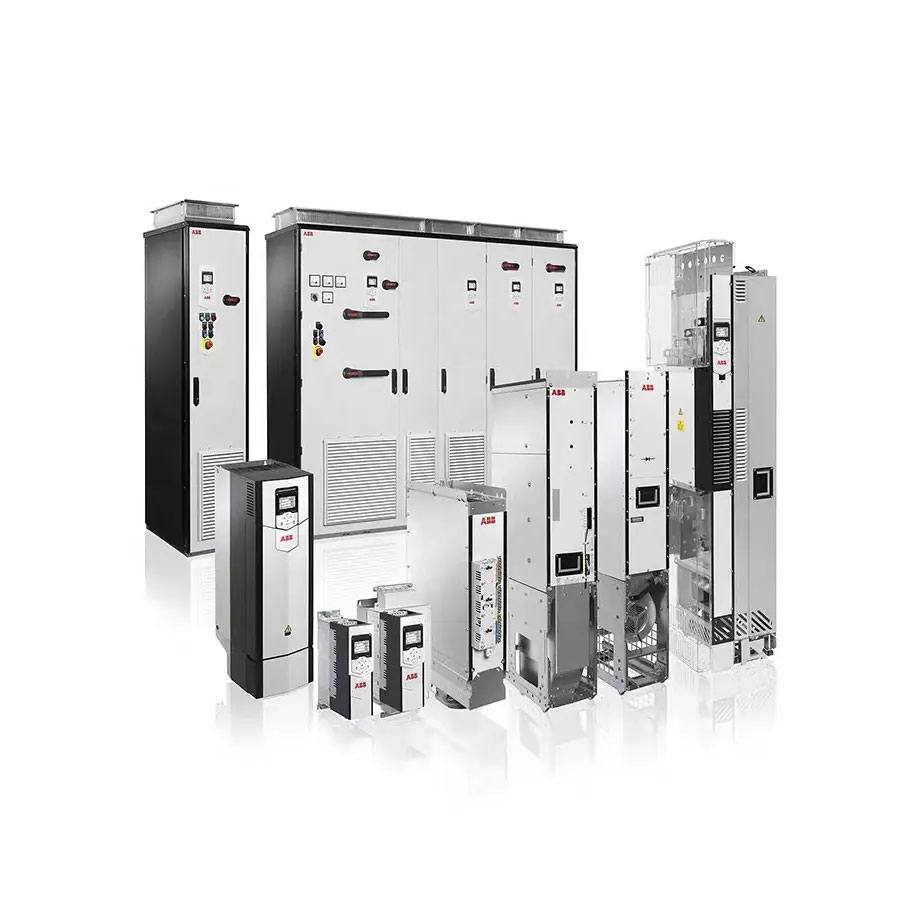

ACS880-07-1160A-7 - image 0
ACS880-07-1160A-7 - image 1
ACS880-07-1160A-7 - image 2
ACS880-07-1160A-7 - image 3
ACS880-07-1160A-7 - image 4
ACS880-07-1160A-7 - image 5
Previous
Ordering
Country of Origin:Finland (FI)
Customs Tariff Number:85044086
Invoice Description:ACS880-07-1160A-7 PN:1100kW, IN:1160A
Made To Order:Yes
Minimum Order Quantity:1 piece
Order Multiple:1 piece
Quote Only:No
Selling Unit of Measure:piece
Technical
Number of Phases:3
Frequency (f):50 / 60 (+/- 5%) Hz
Frame Size:nxR8i
Input Voltage (Uin):525 ... 690 V
Mounting Type:Cabinet-built
Output Current, Heavy-Duty Use (IHD):868 A
Output Current, Light-Overload Use (ILD):1114 A
Output Current, Normal Use (In):1160 A
Output Power, Heavy-Duty Use (PHD):800 kW
Output Power, Light-Overload Use (PLD):1100 kW
Output Power, Normal Use (Pn):1100 kW
Ecodesign Exemption:Energy efficiency data is not provided for the drive. The drives rated above 1 000 kW output power are not in the scope of the EU ecodesign requirements (Regulation EU/2019/1781).
Additional Information
Product Main Type:ACS880-07-1160A-7
Product Name:Frequency Converter
Classifications
Product Series:ACS880
UNSPSC:39122001
Environmental
SCIP:F97239A0-8F1B-4B36-A0F6-34D1783CB8EB Finland (FI)
WEEE Category:4. Large Equipment (Any External Dimension More Than 50 cm)
