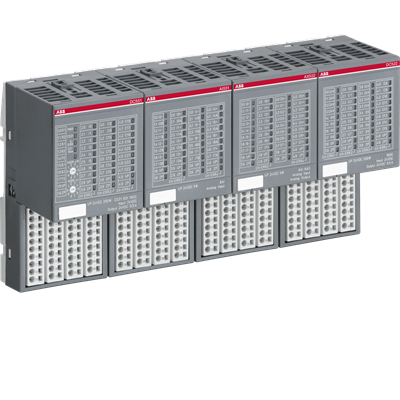

AC500 - S500 I/O modules
We believe expanding or adding field devices should be quite simple. Therefore we develop multifunctional and software configurable I/O modules and provide numerous basic I/O modules with different channels, signal voltage and fieldbus connections.
You can choose and combine your needed type of connection:
Central, using local I/O bus of CPU module.
Up to ten I/O modules can be connected to the CPU.
Decentralized periphery via fieldbus between CPU module and remote I/O modules.
For each fieldbus slave, up to ten I/O modules can be connected.
Multifunctional approach: some modules cover a broad range of requirements, e.g. AI531 with 8 types of different signals in one module.
| DIGITAL | NUMBER OF I/OS | FEATURES |
| DC522 | 16DC | Configurable, transistor 0.5 A, fast counter |
| DC523 | 24DC | Configurable, transistor 0.5 A, fast counter |
| DC532 | 16DI 16DC | 16 configurable, transistor 0.5 A, fast counter |
| DI524 | 32DI | 24 V DC |
| DO524 | 32DO | Transistor 0.5 A |
| DO526 | 8DO | Transistor 2 A |
| DX522 | 8DI 8DO | Relay |
| DX531 | 8DI 4DO | Relay |
| ANALOG | NUMBER OF I/OS | FEATURES |
| AC522 | 8AC | U, I, RTD |
| AI523 | 16AI | V, mA, Pt100, Pt1000, Ni1000 |
| AI531 | 8AI | V, mA, Pt100, Pt1000, Ni1000, thermocouple |
| AO523 | 16AO | 8 AO U, I & 8 AO U |
| AX521 | 4AI 4AO | V, mA, Pt100, Pt1000, Ni1000 |
| AX522 | 8AI 8AO | V, mA, Pt100, Pt1000, Ni1000 |
| SPECIAL FUNCTION MODULES | NUMBER OF I/OS | FEATURES |
| CD522 | 2DI 8DC | Fast counter, PWM and configurable |
| DA501 | 4AI 2AO 16DI 8DC | Fast counter, 8 configurable |
| DA502 | 4AI 2AO 16DO 8DC | Fast counter, 8 configurable |
| DC541 | 8DC | Fast counter, configurable |
Quick View Product Information
AC522
1SAP250500R0001
Analog input/output module. 4 channels: AI U, I, RTD, DI or AO U, I. 4 channels: AI U, I, RTD or AO U (AC522)
AI523
1SAP250300R0001
Analog input module. 16 AI: U, I, RTD, DI (AI523)
AI531
1SAP250600R0001
Analog input module. 8 AI: U, I, RTD, R, TC, DI (AI531)
AO523
1SAP250200R0001
Analog output module. 8 AO: U, I. 8 AO: U (AO523)
AX521
1SAP250100R0001
Analog input/output module. 4 AI: U, I, RTD. 4 AO: U, I (AX521)
AX522
1SAP250000R0001
Analog input/output module. 8 AI: U, I, RTD. 4 AO: U, I. 4 AO: U (AX522)
CD522
1SAP260300R0001
Function module. 2 encoder inputs. 2 PWM outputs. 2 DI 24VDC. 8 configurable DI/DO 24VDC (CD522)
DA501
1SAP250700R0001
Digital/analog I/O module. 16 DI: 24VDC. 4 AI: U, I, RTD. 2 AO: U, I. 8 configurable DI/DO: 24VDC 0.5A (DA501)
DA502
1SAP250800R0001
Digital/analog I/O module. 16 DO 24VDC 0.5A. 4 AI: U, I, RTD. 2 AO: U, I. 8 configurable DI/DO: 24VDC 0.5A (DA502)
DC522
1SAP240600R0001
Digital input/output module. 16 configurable DI/DO: 24VDC 0.5A. 8 aux. terminals 0 V. 8 aux. terminals 24VDC (DC522)
DC523
1SAP240500R0001
Digital input/output module. 24 configurable DI/DO: 24VDC 0.5A. 4 aux. terminals 0 V. 4 aux. terminals 24VDC (DC523)
DC532
1SAP240100R0001
Digital input/output module. 16 DI: 24VDC. 16 configurable DI/DO: 24VDC 0.5A (DC532)
DC541-CM
1SAP270000R0001
Function module. 8 fast configurable DI/DO 24VDC 0.5A. To be mounted on terminal base (DC541-CM)
DI524
1SAP240000R0001
Digital input module. 32 DI: 24VDC (DI524)
DO524
1SAP240700R0001
Digital output module. 32 DO: 24VDC 0.5A (DO524)
DO526
1SAP240800R0001
Digital output module. 8 DO: 24VDC 2 A (DO526)
DX522
1SAP245200R0001
Digital input/output module. 8 DI: 24VDC. 8 DO relay: 230VAC 3A (DX522)
DX531
1SAP245000R0001
Digital input/output module. 8DI: 4DO: Relay: 0DC: 24 ... 230 V AC/DC 3 A (DX531)
TU515
1SAP212200R0001
I/O terminal unit. For analog and 24 VDC digital modules. Screw terminals (TU515)
TU516
1SAP212000R0001
I/O terminal unit. For analog and 24 VDC digital modules. Spring terminals (TU516)
TU516-H
1SAP215000R0001
I/O terminal unit. For analog and 24 VDC digital modules. Spring terminals. Hot Swap (TU516-H)
TU531
1SAP217200R0001
I/O terminal unit. For 230 VAC and relay modules. Screw terminals (TU531)
TU532
1SAP217000R0001
I/O terminal unit. For 230 VAC and relay modules. Spring terminals (TU532)
TU532-H
1SAP215100R0001
I/O terminal unit. For 230 VAC and relay modules. Spring terminals. Hot Swap (TU532-H)
TU541
1SAP213000R0001
I/O terminal unit. For 24 VDC high current modules. Screw terminals (TU541)
TU542
1SAP213200R0001
I/O terminal unit. For 24 VDC high current modules. Spring terminals (TU542)
TU542-H
1SAP215200R0001
I/O terminal unit. For 24 VDC high current modules. Spring terminals. Hot Swap (TU542-H)
