AC500-eCo - S500-eCo I/O 模块
AC500-eCo 提供的可扩展性让您确信系统能够随着您的需求而增长。我们为不同的应用提供各种数字和模拟 S500-eCo I/O 模块。
AC500-eCo V2 和 AC500-eCo V3 Standard 和 Pro CPU 可集中扩展最多 10 个 I/O 模块 - 标准 S500 和/或 S500-eCo 模块可以混合使用。
AC500-eCo 与 AC500 PLC 系列兼容 - 这为您提供了基于标准 S500 和 S500-eCo I/O 模块系列构建定制解决方案的选项。
用户可配置的 I/O 系统使您能够灵活地在最后一刻做出决策和修改。
S500-eCo I/O 模块快速概览
设备
数字I/O模块 I/O 数量 特征
DI561 8DI 24伏直流电
DI562 16DI 24伏直流电
DI571 8DI 100-240伏交流电
DI572 16DI 100-240伏交流电
DO561 8DO 晶体管
DO562 16DO 晶体管
DO571 8DO 中继
DO572 8DO 双向晶闸管
DO573 16DO 中继
DX561 8DI/8DO 24V直流/晶体管
DX571 8DI/8DO 24V直流/继电器
DC562 16直流 24 V DC / 晶体管，可配置
模拟量输入/输出模块 I/O 数量 特征
人工智能561 4AI 电压、毫安
人工智能562 2AI 热电阻
人工智能563 4AI 热电偶
AO561 2AO 电压、毫安
AX561 4AI/2AO 电压、毫安
定位模块 I/O 数量 特征
调频562 4DI 4脉冲输出 2 轴脉冲串输出
人工智能561
1TNE968902R1101
模拟量输入模块。4 人工智能：U，我（AI561）
人工智能562
1TNE968902R1102
模拟量输入模块。2 人工智能：RTD (AI562)
人工智能563
1TNE968902R1103
模拟量输入模块。4 人工智能：TC (AI563)
AO561
1TNE968902R1201
模拟量输出模块。2 AO：U，我（AO561）
AX561
1TNE968902R1301
模拟输入/输出模块。4 AI：U、I。 2 AO：U、I (AX561)
DC561
1TNE968902R2001
DC561:S500，数字 I/O.Mod.16DC Interfas (I)
DC562
1SAP231900R0000
数字输入/输出模块。晶体管：16DC：0.5A（DC562）
DI561
1TNE968902R2101
数字输入模块。8 DI 汇/源：24VDC (DI561)

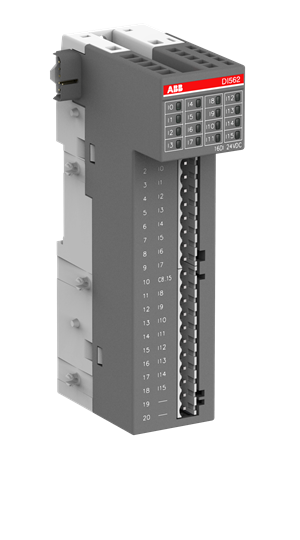

DI562
1TNE968902R2102
数字输入模块。16 DI 汇/源：24VDC (DI562)
DI571
1TNE968902R2103
数字输入模块。8 DI：100..240VAC (DI571)
DI572
1SAP230500R0000
数字输入模块。16 DI 100..240VAC (DI572)
DO561
1TNE968902R2201
数字输出模块。8个DO：24VDC 0.5A（DO561）
DO562
1SAP230900R0000
数字输出模块。16个DO：24VDC 0.5A（DO562）
DO571
1TNE968902R2202
数字输出模块。8 DO 继电器：24VDC/24VAC 或 100..240VAC 2A (DO571)
DO572
1TNE968902R2203
数字输出模块。8 DO 三端双向可控硅开关：100..240VAC 0.3A (DO572)
DO573
1SAP231300R0000
数字输出模块。16 DO 继电器：24VDC/24VAC 或 100..240VAC 2A (DO573)
DX561
1TNE968902R2301
数字输入/输出模块。8 DI 汇/源：24VDC。8路输出：24VDC 0.5A (DX561)
DX571
1TNE968902R2302
数字输入/输出模块。8 DI 汇/源：24VDC。8 DO 继电器：120..240VAC 2A (DX571)
调频562
1SAP233100R0001
功能模块。用于定位。2 轴。脉冲输出RS422。最大频率 250 kHz (FM562)
AC500-eCo - S500-eCo I/O modules
The scalability offered by the AC500-eCo gives you the assurance of knowing that the system is able to grow with your needs. We offer a wide range of digital and analog S500-eCo I/O modules for different applications.
AC500-eCo V2 and AC500-eCo V3 Standard and Pro CPUs are centrally extendable with up to 10 I/O modules - standard S500 and/or S500-eCo modules can be mixed.
The AC500-eCo is compatible with the AC500 PLC family - this provides you with the option to build customized solutions based on the standard S500 and S500-eCo I/O modules range.
The user-configurable I/O system gives you the flexibility of being able to make decisions and modifications right up to the last minute.
S500-eCo I/O modules fast overview
Devices
DIGITAL I/O MODULES NUMBER OF I/OS FEATURES
DI561 8DI 24 V DC
DI562 16DI 24 V DC
DI571 8DI 100-240 V AC
DI572 16DI 100-240 V AC
DO561 8DO Transistor
DO562 16DO Transistor
DO571 8DO Relay
DO572 8DO Triac
DO573 16DO Relay
DX561 8DI / 8DO 24 V DC / transistor
DX571 8DI / 8DO 24 V DC / relay
DC562 16DC 24 V DC / transistor, configurable
ANALOG I/O MODULES NUMBER OF I/OS FEATURES
AI561 4AI V, mA
AI562 2AI RTD
AI563 4AI Thermocouple
AO561 2AO V, mA
AX561 4AI / 2AO V, mA
POSITIONING MODULE NUMBER OF I/OS FEATURES
FM562 4DI 4 pulse outputs Pulse Train Outputs for 2 axes
Quick View Product Information
AI561
1TNE968902R1101
Analog input module. 4 AI: U, I (AI561)
AI562
1TNE968902R1102
Analog input module. 2 AI: RTD (AI562)
AI563
1TNE968902R1103
Analog input module. 4 AI: TC (AI563)
AO561
1TNE968902R1201
Analog output module. 2 AO: U, I (AO561)
AX561
1TNE968902R1301
Analog input/output module. 4 AI: U, I. 2 AO: U, I (AX561)
DC561
1TNE968902R2001
DC561:S500,Digital I/O.Mod.16DC Interfas (I)
DC562
1SAP231900R0000
Digital input/output module. Transistor: 16DC: 0.5 A (DC562)
DI561
1TNE968902R2101
Digital input module. 8 DI sink/source: 24VDC (DI561)
DI562
1TNE968902R2102
Digital input module. 16 DI sink/source: 24VDC (DI562)
DI571
1TNE968902R2103
Digital input module. 8 DI: 100..240VAC (DI571)
DI572
1SAP230500R0000
Digital input module. 16 DI 100..240VAC (DI572)
DO561
1TNE968902R2201
Digital output module. 8 DO: 24VDC 0.5A (DO561)
DO562
1SAP230900R0000
Digital output module. 16 DO: 24VDC 0.5A (DO562)
DO571
1TNE968902R2202
Digital output module. 8 DO relay: 24VDC/24VAC or 100..240VAC 2A (DO571)
DO572
1TNE968902R2203
Digital output module. 8 DO triac: 100..240VAC 0.3A (DO572)
DO573
1SAP231300R0000
Digital output module. 16 DO relay: 24VDC/24VAC or 100..240VAC 2A (DO573)
DX561
1TNE968902R2301
Digital input/output module. 8 DI sink/source: 24VDC. 8 DO: 24VDC 0.5A (DX561)
DX571
1TNE968902R2302
Digital input/output module. 8 DI sink/source: 24VDC. 8 DO relay: 120..240VAC 2A (DX571)
FM562
1SAP233100R0001
Function module. For positioning. 2-axis. Pulse outputs RS422. Maximum frequency 250 kHz (FM562)
