基于成功的 AC500 系列,极其紧凑的 AC500-eCo PLC 提供了最灵活、最经济的配置、低成本和直接的服务,以及从小型到要求苛刻的应用的现代控制系统的所有要求。
十多年来,AC500-eCo V2 一直是经过现场测试的经过验证且可靠的 CPU 系列,并且在市场上享有盛誉。其后继者是新的 AC500-eCo V3 CPU。
AC500-eCo V3 CPU 基于与 AC500-eCo V2 相同的概念和占用空间。它们通过更大的内存和更高的处理性能来增强范围。AC500-eCo V3 CPU 通过选件板提供更多板载 I/O 通道和更高的可扩展性,从而在保持占地面积的同时扩展功能集。此外,它们还包括各种现场总线通信功能以及通过安全协议连接到云应用程序。
ABB 对整个 AC500 系列使用基于 IEC61131-3 标准的编程系统 - 使用 Automation Builder 工程套件,您将立即启动并运行。
AC500-eCo V3 功能和设备快速概览
AC500-eCo V3 是一个全面的 PLC 系列,提供现成的解决方案以及用于入门级自动化解决方案的所有必要板载组件。Basic、Standard 和 Pro 三种不同性能等级的 CPU 兼容,可实现无缝扩展。
特征
高达 8 MB 用户程序存储器(程序、数据和 Web 数据)和高达 100 kB 剩余数据,无需电池。
极快的程序处理时间,低至 0.02 µs/指令。
浮点处理器可实现快速、精确的计算。
使用选项板最多三个 RS485 串行接口。
一或两个具有交换功能的独立以太网接口。
Web 服务器 HTML5、FTP 服务器和 SNTP/NTP 功能。
用于数据交换的 OPC UA 服务器或 OPC DA,具有安全 TLS 协议的 MQTT。
板载或可选实时时钟,不带电池。
微型存储卡插槽用于数据存储和程序备份。
多达 22 个带晶体管或继电器输出的板载 I/O 通道。
新的快速 I/O 通道可用于多达四个快速计数器/编码器和多达四个 PTO/PWM 输出,适用于简单运动应用。
数字或模拟 I/O 通道或串行接口扩展,最多具有三个选件板。
可集中扩展多达 10 个 I/O 模块(可以混合使用标准 S500 和/或 S500-eCo 模块)。
令人印象深刻的面向对象编程。
多种通讯方式选择
我们的 AC500-eCo PLC 套件配备了全面的通信选项,如“标准”或“可选”和“许可”。
可以连接可选的串行接口,总共允许最多三个串行端口用于 Modbus RTU 上的通信。
以太网和可选的串行接口提供了一种简单的数据交换方式。
具有 HTML5 可视化功能和超大内存的集成 Web 服务器允许最多四个同步客户端(带有 Web 浏览器)进行自定义可视化,这些客户端可以连接到 CPU。
接口/协议
以太网接口可用于编程和通信协议,例如 SNTP/NTP 客户端、DHCP、UDP、Modbus TCP,也可用于远程 I/O、HTTP 和 FTP。
新CPU提供标准的物联网协议,例如OPC DA、OPC UA服务器和MQTT。
此外,Pro CPU 版本支持用于遥控应用的 IEC 60870 协议。
可以添加各种新的许可协议,例如以太网/IP扫描仪和适配器、EtherCAT Master、IEC61850电站协议以及用于楼宇管理应用的KNX和BACnet。
设备
CPU类型 以太网 板载 I/O 电源
PM5012-T-ETH 6DI 4DO 晶体管 24伏直流电
PM5012-R-ETH 6DI 4DO 继电器 24伏直流电
PM5032-T-ETH 12DI 8DO 2DC 晶体管 24伏直流电
PM5032-R-ETH 12DI 6DO 2DC 继电器 24伏直流电
PM5052-T-ETH 12DI 8DO 2DC 晶体管 24伏直流电
PM5052-R-ETH 12DI 6DO 2DC 继电器 24伏直流电
PM5072-T-2ETH 12DI 8DO 2DC 晶体管 24伏直流电
PM5072-T-2ETHW 12DI 8DO 2DC 晶体管 24伏直流电
览 产品 信息
PM5012-R-ETH
1SAP122700R0072
处理器模块。内存1MB。6 DI 24 伏直流电。4 DO 继电器。以太网接口。1 个选件插槽 (PM5012-R-ETH)
PM5012-T-ETH
1SAP122600R0072
处理器模块。内存1MB。6 DI 24 伏直流电。4 DO 晶体管 24 VDC。以太网接口。1 个选件插槽 (PM5012-T-ETH)
PM5032-R-ETH
1SAP123500R0072
处理器模块。内存2MB。12 DI 24 伏直流电。6 DO 继电器。2 直流 24VDC。以太网接口。2 个选件插槽 (PM5032-R-ETH)
PM5032-T-ETH
1SAP123400R0072
处理器模块。内存2MB。12 DI 24VDC。8 DO 24VDC 0.5A。2 直流 24VDC。以太网接口。2 个选件插槽 (PM5032-T-ETH)
PM5052-R-ETH
1SAP124100R0072
处理器模块。内存4MB。12 DI 24 伏直流电。6 DO 继电器。2 直流 24 伏直流电。以太网接口。3 个选件插槽 (PM5052-R-ETH)
PM5052-T-ETH
1SAP124000R0072
处理器模块。内存4MB。12 DI 24 伏直流电。8DO 24 VDC 0.5A。2 直流 24 伏直流电。以太网接口。3 个选件插槽 (PM5052-T-ETH)
PM5072-T-2ETH
1SAP124500R0073
处理器模块。内存8MB。12 DI 24 伏直流电。8 DO 24 VDC 0.5A。2 直流 24 伏直流电。2 个以太网接口。3 个选件插槽 (PM5072-T-2ETH)
PM554-RP
1SAP120700R0001
PM554-RP:AC500,程序逻辑控制器
PM554-RP-AC
1SAP120800R0001
PM554-RP-AC:AC500,程序逻辑控制器
PM554-TP
1SAP120600R0001
PM554-TP:AC500,程控器
PM554-TP-ETH
1SAP120600R0071
PM554-TP-ETH:AC500,程序逻辑控制器
PM556-TP-ETH
1SAP121200R0071
PM556-TP-ETH:AC500,程序逻辑控制器
PM564-R-AC(有限)
1TNE968900R1220
PM564-R-AC:AC500,程序逻辑控制器
PM564-R-ETH-AC(有限)
1TNE968900R1211
PM564-R-ETH-AC:AC500,程序逻辑控制器
PM564-RP
1SAP121000R0001
PM564-RP:AC500,程序逻辑控制器
PM564-RP-AC
1SAP121100R0001
PM564-RP-AC:AC500,程序逻辑控制器
PM564-RP-ETH
1SAP121000R0071
PM564-RP-ETH:AC500,程序逻辑控制器
PM564-RP-ETH-AC
1SAP121100R0071
PM564-RP-ETH-AC:AC500,程序日志控制。
PM564-T(有限)
1TNE968900R1100
PM564-T:AC500,程序逻辑控制器 128kB
PM564-TP
1SAP120900R0001
PM564-TP:AC500,程控器
PM564-TP-ETH
1SAP120900R0071
PM564-TP-ETH:AC500,程序逻辑控制器
PM566-TP-ETH
1SAP121500R0071
PM566-TP-ETH:AC500,程控器
AC500-eCo - CPUs
Based on the successful AC500 range, the extremely compact AC500-eCo PLCs offer the most flexible and economical configuration available, low-cost and straightforward servicing, and all requirements of a modern control system from small to demanding applications.
For over a decade, the AC500-eCo V2 has been a proven and reliable range of CPUs tested in the field, and it is well established on the market. It is succeeded by the new AC500-eCo V3 CPUs.
The AC500-eCo V3 CPUs are based on the same concept and footprint as AC500-eCo V2. They enhance the range with a larger memory, and more processing performance. The AC500-eCo V3 CPUs provide more onboard I/O channels and more scalability via option boards which extends the feature set while maintaining the footprint. Additionally, they include various fieldbus communication capabilities and connectivity to cloud applications with secure protocols.
ABB uses a standard IEC61131-3-based programming system for the entire AC500 family - you will be up and running in no time with Automation Builder engineering suite.
AC500-eCo V3 fast overview on features and devices
AC500-eCo V3 is a comprehensive range of PLCs providing ready-to-go solutions with all necessary components onboard to be used for entry-level automation solutions. The CPUs in the three different performance classes Basic, Standard and Pro are compatible for seamless scaling.
Features
Up to 8 MB user program memory (program, data and web data) and up to 100 kB remanent data, no battery required.
Extremely fast program processing time, down to 0.02 µs/instruction.
Floating-point processors for fast and precise calculation.
Up to three RS485 serial interfaces using option boards.
One or two independent Ethernet interfaces with switch capability.
Web server HTML5, FTP(s) server and SNTP/NTP features.
OPC UA server or OPC DA for data exchange, MQTT with secure TLS protocol.
Onboard or optional real-time clock, without a battery.
Micro memory card slot for data storage and program backup.
Up to 22 onboard I/O channels with transistor or relay outputs.
New fast I/O channels for up to four fast counters/encoders and up to four PTO/PWM outputs for simple motion applications.
Digital or analog I/O channels or serial interface extension with up to three option boards.
Centrally extendable with up to 10 I/O modules (standard S500 and/or S500-eCo modules can be mixed).
Impressive object-oriented programming.
Multiple communication options
Our AC500-eCo PLC package comes with a comprehensive range of communication options as “standard” or “optional” and “licensed”.
Optional serial interfaces can be attached, allowing for a total of up to three serial ports for communication purposes on Modbus RTU.
Ethernet and the optional serial interfaces provide an easy means of exchanging data.
The integrated web server with HTML5 visualization with a very large memory allows for customized visualization for up to four simultaneous clients (with web browser), which can be connected to the CPU.
Interfaces/protocols
The Ethernet interface can be used for programming and communication protocols such as SNTP/NTP client, DHCP, UDP, Modbus TCP and also for remote I/O, HTTP(s) and FTP(s).
The new CPUs provide IoT protocols as standard, such as OPC DA, OPC UA server and MQTT.
In addition, the Pro CPU version supports IEC 60870 protocol for telecontrol applications.
Various new, licensed protocols can be added, such as Ethernet/IP scanner and adapter, EtherCAT Master, IEC61850 power station protocol but also KNX and BACnet for building management applications.
More AC500-eCo V3 information needed ?
Devices
CPU TYPE ETHERNET ONBOARD I/OS POWER SUPPLY
PM5012-T-ETH 6DI 4DO Transistor 24 V DC
PM5012-R-ETH 6DI 4DO Relay 24 V DC
PM5032-T-ETH 12DI 8DO 2DC Transistor 24 V DC
PM5032-R-ETH 12DI 6DO 2DC Relay 24 V DC
PM5052-T-ETH 12DI 8DO 2DC Transistor 24 V DC
PM5052-R-ETH 12DI 6DO 2DC Relay 24 V DC
PM5072-T-2ETH 12DI 8DO 2DC Transistor 24 V DC
PM5072-T-2ETHW 12DI 8DO 2DC Transistor 24 V DC
Quick View Product Information
PM5012-R-ETH
1SAP122700R0072
Processor module. Memory 1MB. 6 DI 24 VDC. 4 DO-Relay. Ethernet interface. 1 option slot (PM5012-R-ETH)
PM5012-T-ETH
1SAP122600R0072
Processor module. Memory 1MB. 6 DI 24 VDC. 4 DO-Transistor 24 VDC. Ethernet interface. 1 option slot (PM5012-T-ETH)
PM5032-R-ETH
1SAP123500R0072
Processor module. Memory 2MB. 12 DI 24 VDC. 6 DO-Relay. 2 DC 24VDC. Ethernet interface. 2 option slots (PM5032-R-ETH)
PM5032-T-ETH
1SAP123400R0072
Processor module. Memory 2MB. 12 DI 24VDC. 8 DO 24VDC 0.5A. 2 DC 24VDC. Ethernet interface. 2 option slots (PM5032-T-ETH)
PM5052-R-ETH
1SAP124100R0072
Processor module. Memory 4MB. 12 DI 24 VDC. 6 DO-Relay. 2 DC 24 VDC. Ethernet interface. 3 option slots (PM5052-R-ETH)
PM5052-T-ETH
1SAP124000R0072
Processor module. Memory 4MB. 12 DI 24 VDC. 8DO 24 VDC 0.5A. 2 DC 24 VDC. Ethernet interface. 3 option slots (PM5052-T-ETH)

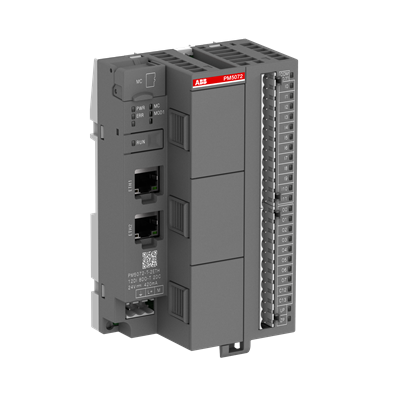

PM5072-T-2ETH
1SAP124500R0073
Processor module. Memory 8MB. 12 DI 24 VDC. 8 DO 24 VDC 0.5A. 2 DC 24 VDC. 2 Ethernet interfaces. 3 option slots (PM5072-T-2ETH)
PM554-RP
1SAP120700R0001
PM554-RP:AC500,Prog.Logic Controller
PM554-RP-AC
1SAP120800R0001
PM554-RP-AC:AC500,Prog.Logic Controller
PM554-TP
1SAP120600R0001
PM554-TP:AC500,Prog.Logic Controller
PM554-TP-ETH
1SAP120600R0071
PM554-TP-ETH:AC500,Prog.Logic Controller
PM556-TP-ETH
1SAP121200R0071
PM556-TP-ETH:AC500,Prog.Logic Controller
PM564-R-AC (limited)
1TNE968900R1220
PM564-R-AC:AC500,Prog.Logic Controller
PM564-R-ETH-AC (limited)
1TNE968900R1211
PM564-R-ETH-AC:AC500,Prog.Logic Controller
PM564-RP
1SAP121000R0001
PM564-RP:AC500,Prog.Logic Controller
PM564-RP-AC
1SAP121100R0001
PM564-RP-AC:AC500,Prog.Logic Controller
PM564-RP-ETH
1SAP121000R0071
PM564-RP-ETH:AC500,Prog.Logic Controller
PM564-RP-ETH-AC
1SAP121100R0071
PM564-RP-ETH-AC:AC500,Prog.Log.Control.
PM564-T (limited)
1TNE968900R1100
PM564-T:AC500,Prog.Logic Controller 128kB
PM564-TP
1SAP120900R0001
PM564-TP:AC500,Prog.Logic Controller
PM564-TP-ETH
1SAP120900R0071
PM564-TP-ETH:AC500,Prog.Logic Controller
PM566-TP-ETH
1SAP121500R0071
PM566-TP-ETH:AC500,Prog.Logic Controller
